Formula SAE Vehicle
Overview

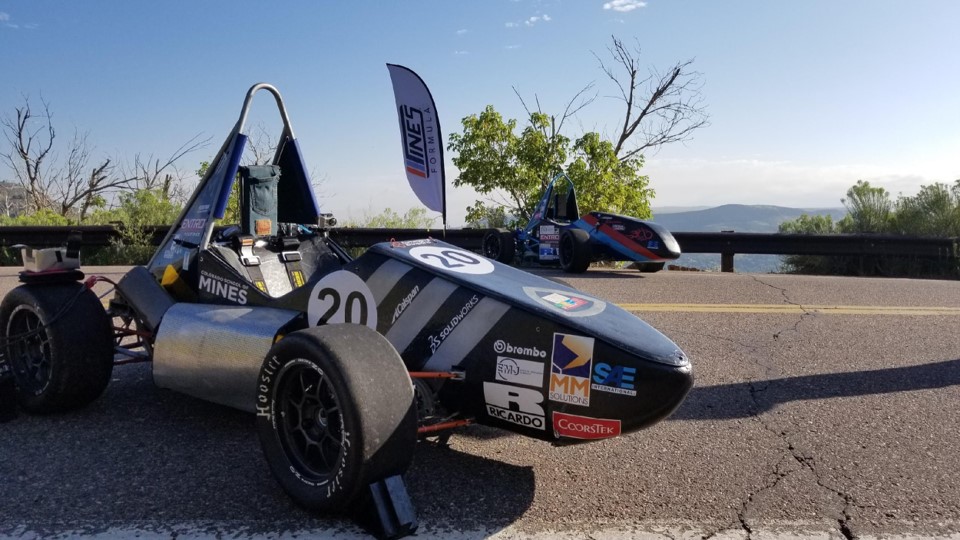

The FSAE team faced issues with various components on the MF8 competition vehicle. From poorly executed parts to non-existent systems, the car was undrivable in its current state. The Capstone team was tasked with fixing these issues by redesigning and improving various parts of the car to make it ready for future competitions.
Throughout this project, four different deliverables were created by the Senior Design team. These include redesigned brake calipers, carbon fiber suspension members, a new wiring harness, and a steering wheel designed for maximum driver assistance; each of which are unique to the Mines Formula Vehicle, MF8.
The old brake calipers had points of interference with the rims after a change in their size, so redesigned calipers were crafted for a perfect fit in the MF8 vehicle wheel well. New carbon fiber suspension members provide the car with greater stiffness and larger steering angles, while having a lightweight and slim design. The developed wiring harness allows for future serviceability, including water, thermal, and abrasion protection. The steering wheel provides the driver with an electronic interface displaying information like their lap time, current engine temperature, RPMs and a paddle shifter for changing gears quickly.
Live Zoom Chat
Use the link below to join us live from 8:00 – 10:30 a.m. on April 29th.
Please use passcode: 925367
Team Members
- Giorgio Cassata
- Michael English
- Corrie Hiatt
- Joshua Lehn
- Cole Robbins
- Parker Shapen
- Brayden Skrine
- Nate Smith
- Tory Wilson
- Finn Mahoney
The Client
- Dr. Gregory Bogin
Acknowledgements
Project Advisor: Adam Duran
Donations Made by: Mines Formula
Video
Elevator Pitch
Our project team was tasked with developing upgrades for the Mines Formula, the Formula SAE team here at Mines. Discussions with members of the team lead to the decision of developing packages for the suspension, electrical, brakes, and ergonomics subsystems. The suspension team focused on creating suspension members that are both lighter and stiffer. A wiring harness was developed for the electrical system that incorporates motorsport style construction. The brakes team has designed a bespoke titanium front caliper that allows reduced weight and improved packaging. A steering wheel was developed for the ergonomics system that has increased comfort, reduced weight, and a provides critical information to the driver via a custom integrated electrical package.
Design Approach
Suspension:
A design matrix was used to evaluate the variety of concepts available. From this design matrix, carbon fiber tubes with glued end pieces were chosen. With the non-isotropic properties of carbon fiber, testing was conducted to evaluate the properties of the carbon tubes. Determining carbon tube properties then allowed design of tube sizing and end piece geometry.
Carbon Tube Test Pieces
Test subjects built for physical testing
Carbon Tube Testing
Physical testing of tube to determine strength and modulus
Finite Element Stress Analysis
Analysis of tube and end pieces
Testing Data
Modulus Data acquired from physical testing
Brake Calipers:
While exploring conceptual designs, a black box model was developed to help understand the inputs and outputs of energy in the caliper system. A brake line diagram was also created to allow us to validate the design of the calipers and that they would have sufficient locations for bleed screws, NPT adapters and flexible brake lines. With a concept decided, finite element analysis was utilized to complete stress and heat transfer studies.
Fittings Layout
Layout of line and bleeder fittings
Finite Element Stress Analysis
Analysis of brake rotor stress
Rotor Thermal Analysis
Thermal Study of rotor using ANSYS
Braking Cycle Temperature Study
Analysis of repeated braking events
Wiring Harness:
A variety of wiring harness methods were explored before selecting a concentrically twisted harness. With a concept in mind, wiring diagrams, material selection, and construction layouts were created.
Wiring Diagram
Section of 1- line diagram of harness
Concentric Twist Layout
Solidworks generated concentric twisting layout
Conductor Specification
Spec 55 Tefzel wire
Wire Sheathing
DR-25 Heat Shrink
Steering Wheel:
The design of the steering wheel was approached with several factors in mind: ergonomics, safety, driver assistance, and drive-ability. Each of these factors influenced the design of the steering wheel. The shape was the wheel was determined through ergonomic testing and adherence to FSAE rules. The electronics package was developed to provide critical vehicle information to the driver in an understandable format.
Carbon Fiber Steering Wheel
Single piece carbon fiber steering wheel
Custom Quick Release
Quick release with integrated electrical connector
Quick Release FEA
Finite element stress analysis of quick release
Electronic Package
3-D printed enclosure for screen and buttons
Design Solution
Suspension:
Through extensive testing, 5/8″ OD 1/2″ ID tubes with spread tow plain weave were selected. Stainless steel end pieces were selected for their strength and bonding properties. Finite element stress analysis was used to verify the end piece geometry. This design results in suspension members with increased stiffness, reduced weight, and better interfacing.
CAD model
CAD model of A-Arm design
End Piece CAD
Model showcasing end piece geometry
A-Arm Design
A-Arm composed of carbon tube and stainless steel end piece
Brake Calipers:
The final design of the brake calipers resulted in a titanium two-piston caliper with external fluid routing. Custom pistons with o-ring grooves were designed in conjunction with the calipers. The design was validated with stress and thermal studies. Compared to off the shelf alternatives, each bespoke caliper is 0.1 lb lighter, 0.2″ thinner, and 0.15″ radially smaller. This contributes greatly to packaging concerns within the wheel.
Brake Caliper Manufacturing
Machining Brake Caliper
Assembled Brake Caliper
Final Assembly of Caliper with pistons installed
Wiring Harness:
A concentrically twisted harness interfacing between all necessary subsystems was designed. Tefzel wire and DR-25 heat shrink was chosen for their durable light weight design. A MoTeC power distribution module was chosen for increased actuator control and safety. Overall, the wiring harness is more organized, durable, and safe than previous methods.
Test Wire Section
Concentric Twisting Test section
Left Side Pod Branch
Concentrically twisted harness branch for left side pod
Motec PDM15
Power Distribution Module
Steering Wheel:
A 10″ carbon fiber steering wheel with integrated controls and display was the result of several design iterations. The carbon fiber construction allows for a lightweight design that also fits well within the hands of the driver. Controls include shifter paddles and buttons and dials to control ECU parameters and screen settings. A custom quick release with an integrated electrical connector allows reduced steering compliance and untethered communication to the electrical system.
Quick Release
Manufactured Quick Release Components
Steering Wheel Mold
CNC’ed aluminum mold
Assembled Steering Wheel
Assembled Steering Wheel with electronic package
Next Steps
Suspension:
With a finalized design and testing, the suspension team is currently waiting on materials to ship to complete the final deliverable.
Brake Calipers:
The brakes team has completed design, analysis, and fabrication of the calipers. They are now in the process of testing the performance of the caliper.
Wiring Harness:
The wiring harness team is currently partway through fabrication and scheduled to finish in the next few weeks.
Steering Wheel:
Preliminary testing of the steering is complete, and total functionality will be verified once the competition vehicle is running.
