NASA Robotic Mining Competition

Overview

Project Overview

The Mines NASA Robotic Mining Competition team, Team HADES (Helluva Autonomous Digging and Excavation System), was given the challenge of creating a mining robot for simulated lunar operation that complied with the NASA Robotic Mining Competition rules. The goals of this competition are to 1) Create a mining robot for the excavation of icy-regolith 2) Promote public outreach in the community 3) Develop extensive reports and perform detailed engineering analysis.



Competition Scope

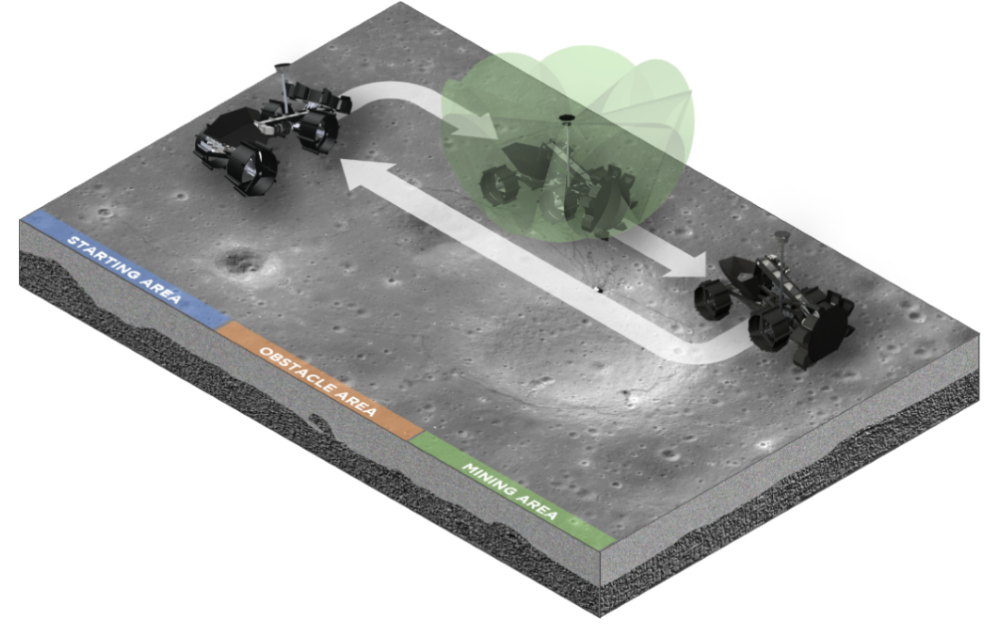

The primary goal of the mining robot is to excavate simulated lunar ice located below 30 cm of BP-1 lunar simulant and return this ice to a collection site. There are three primary areas within the robot’s simulated lunar environment:

  1. Starting / Collection Area – This area is where the robot begins its mining run and returns the excavated material to a collection bin. This collection bin will determine how many points the robot scores for that run.
  2. Obstacle Area – This area has both craters and rocks obstacles that the robot must traverse either under the control of an operator or autonomously.
  3. Mining Area – This area contains the simulated icy regolith below 30 cm of dust. Capturing this icy regolith is the robot’s primary objective.

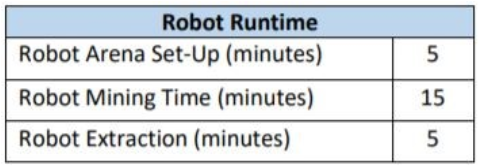

For the mining run, NASA has put limits on robot set-up time, mining time, and robot extraction. These time limits require the robot to be efficient in its navigation and mining because missions on the lunar surface will have tight timelines and no room for error. The table below shows the allotted time for each critical task.

To simulate space flight requirements, NASA has stipulated maximum size requirements for both the robot’s footprint and mass. The maximum size and mass requirements specified by NASA can be seen in the table below.

Gallery

Team Members

  • Chelsea Meilner
  • David Briddle
  • David Shay
  • Isaac Pittel
  • Joseph Duebner
  • Meghan Cameron
  • Parker Steen
  • Pete Wilson
  • Van Wagner
  • Vincent Workman

The Client

  • Dr. Angel Abbud-Madrid/ NASA and Mines Space Resources

Acknowledgements

Project Advisor: Marcus Florida

Technical Advisor: Dr. Angel Abbud-Madrid

Special thanks to all of our wonderful donors!



Gif

Elevator Pitch

The NASA Lunabotics Robotic Mining Competition is an annual event that takes place at Kennedy Space Center in Florida. The competition puts a number of teams against each other to see who can develop the most innovative and effective lunar mining robot, with the end goals of producing competent young engineers and developing new technologies that can be implemented on future lunar rovers.

CSM’s entry for the 2020 competition is team HADES: Helluva Autonomous Digging and Excavation System

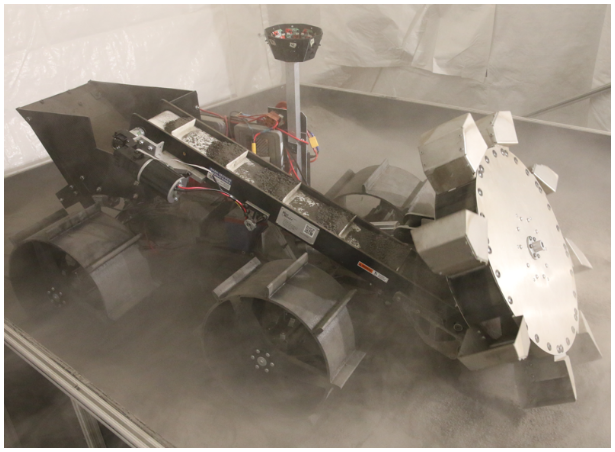

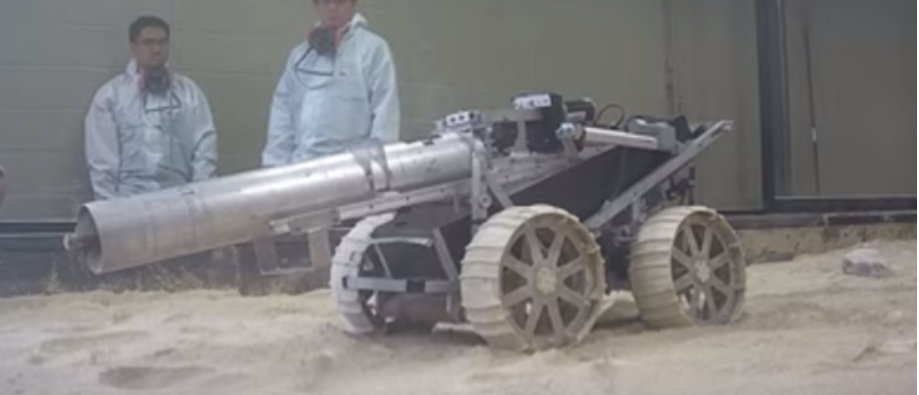

In the past, teams at the Colorado School of Mines have attempted to utilize many different excavation methods. 2019’s team, Kobold Interplanetary Resources, utilized a bucket wheel system as their means of extracting material. In 2020, however, NASA drastically altered the size and mass requirements for the robot’s stowed position. Team HADES decided to further pursue the bucket wheel concept with their own take on the idea.

Design Approach

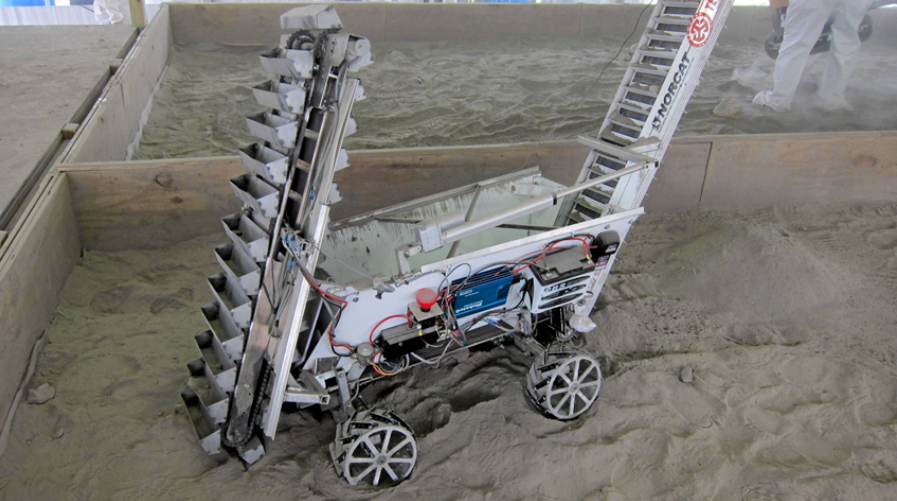

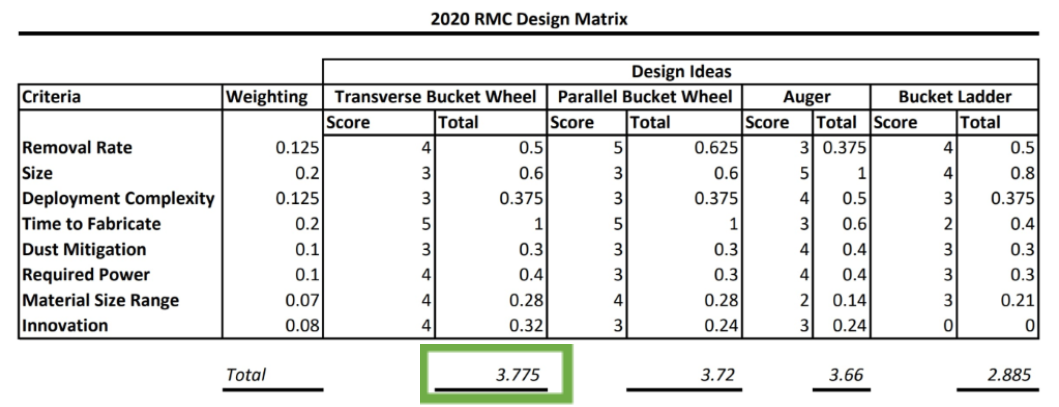

The Design Matrix our team used was heavily influenced by reviewing the performance of multiple teams in previous years of the competition. The advantages of the bucket wheel system stood out compared to other approaches. A visualization of each concept can be seen in the included images. There was a nearly equal score between transverse and parallel bucket systems. Our team decided that the transverse bucket wheel concept was the best option due to the ability to reuse design components from the 2019 Mines Robotic Mining team.

Although autonomy is considered the cutting edge of modern robotics, it offers many challenges, especially in a simulated lunar environment. In reviewing the performance of other teams that competed in past competitions, the number of failures associated with autonomous operation were numerous and severe. These failures were result of the extraordinary difficulties that present themselves while attempting to implement autonomous controls in an environment with restricted localization capabilities. This highlighted that a reliance on autonomous operation would expose the robot to a high risk of failure. With limits on time, budget, and personnel, it was decided to prioritize teleoperation first to ensure that a functional robot was delivered on schedule.



Design Solution

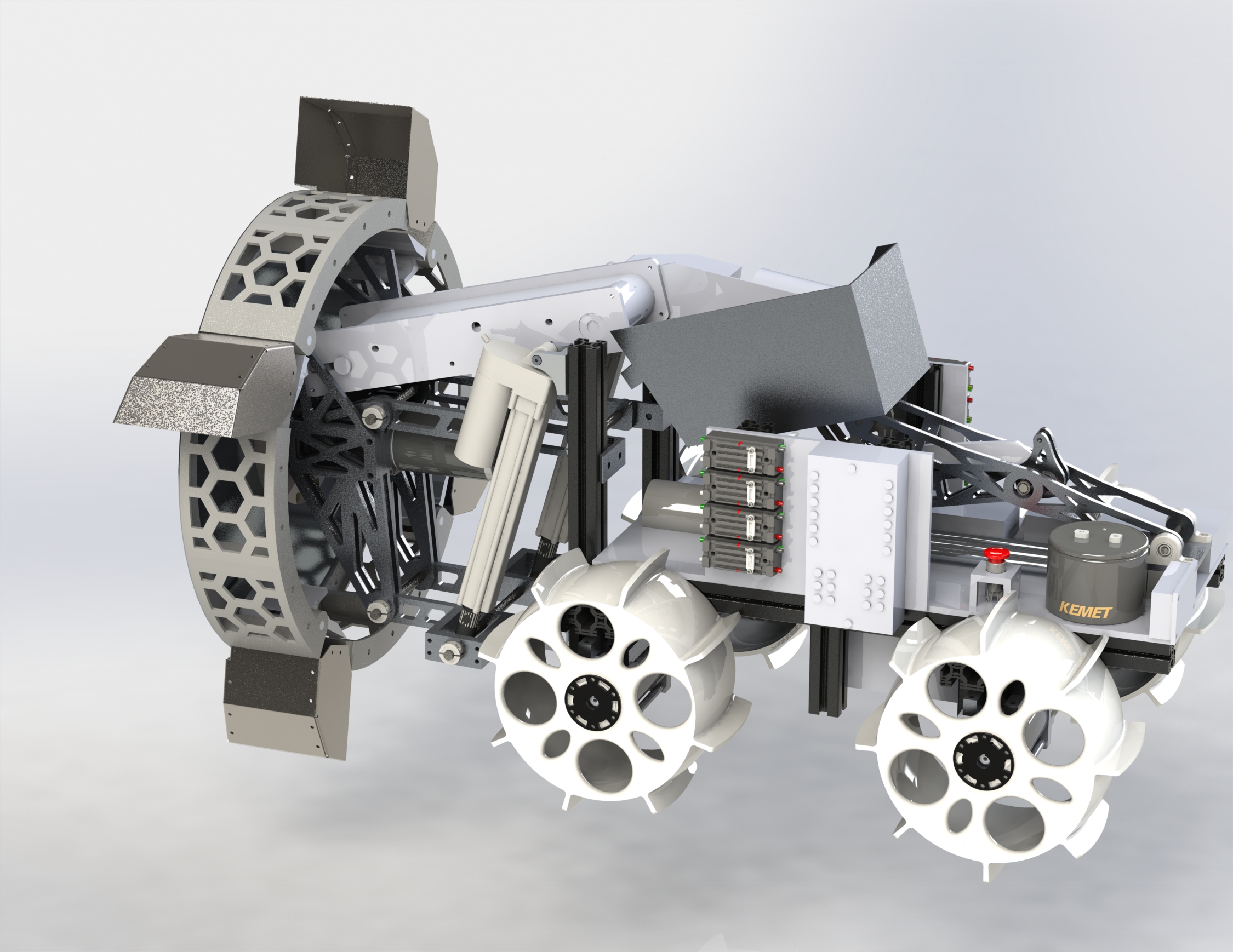

The prototype digger features a total of 6 subsystems: excavation, collection and unloading, chassis, drivetrain, power, and controls.

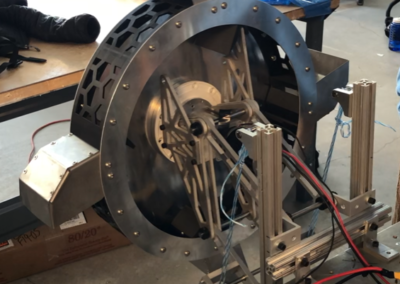

Excavation

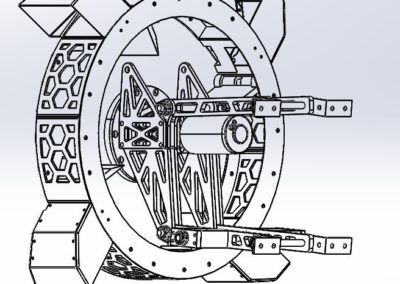

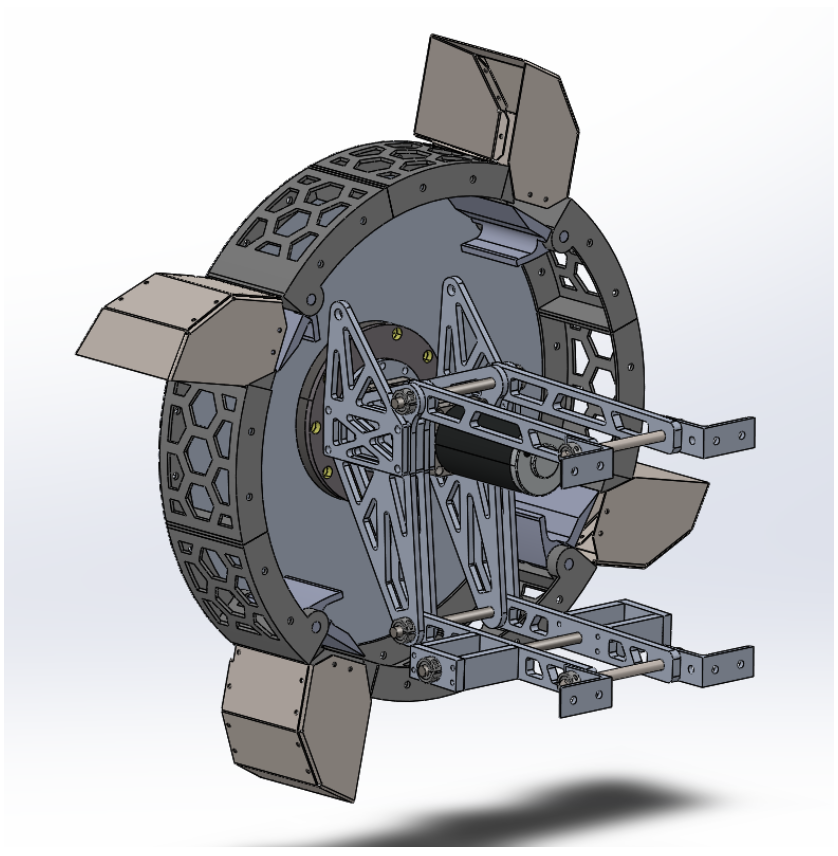

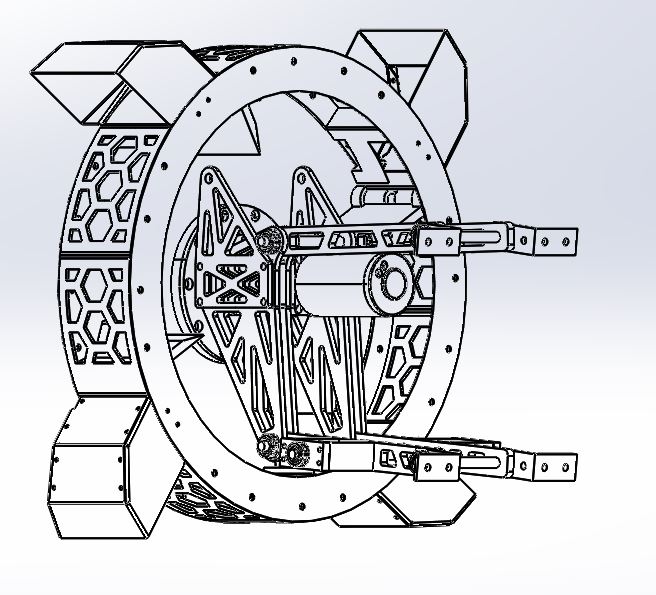

The excavation subsystem incorporates a four-bar linkage mounted bucket wheel with trapdoors to hold material until it is released and dropped over the conveyor belt. The bucket wheel motor is mounted to the four-bar linkage, and the motor’s output shaft is connected to a gearbox that feeds directly into the bucket wheel to provide rotation. The figure below shows the excavation subsystem with a removed trapdoor snag latch for improved visual clarity.

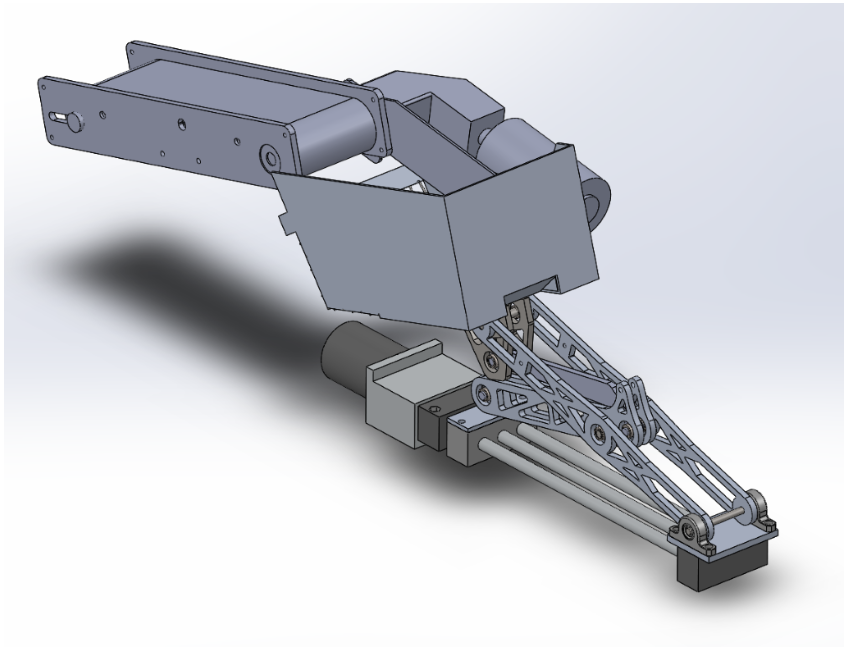

Collection and Unloading

The collection and unloading subsystem transports material from the bucket wheel into a hopper with a mesh bottom surface. Through passive sieving, unwanted BP-1 dust is dropped through the mesh bottom and falls underneath the robot. To assist in dumping, the hopper is mounted on a scissor lift inspired linkage system driven by a linear worm gear actuator. This subsystem can be seen below.



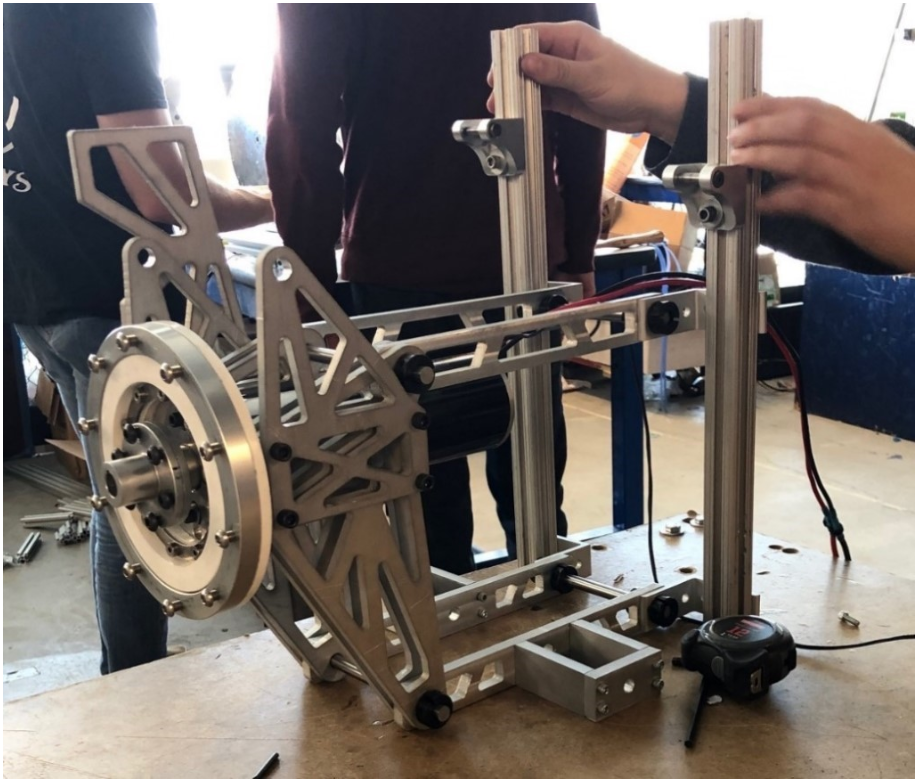

Chassis

The chassis features a planar main body constructed from 8020 aluminum extrusion with vertical mounting posts in various locations. Additionally, custom machined motor mounting brackets are included on the bottom side of the chassis. All 8020 corners are reinforced with corner brackets (not shown) to provide structural rigidity. The chassis can be seen below.



Drivetrain

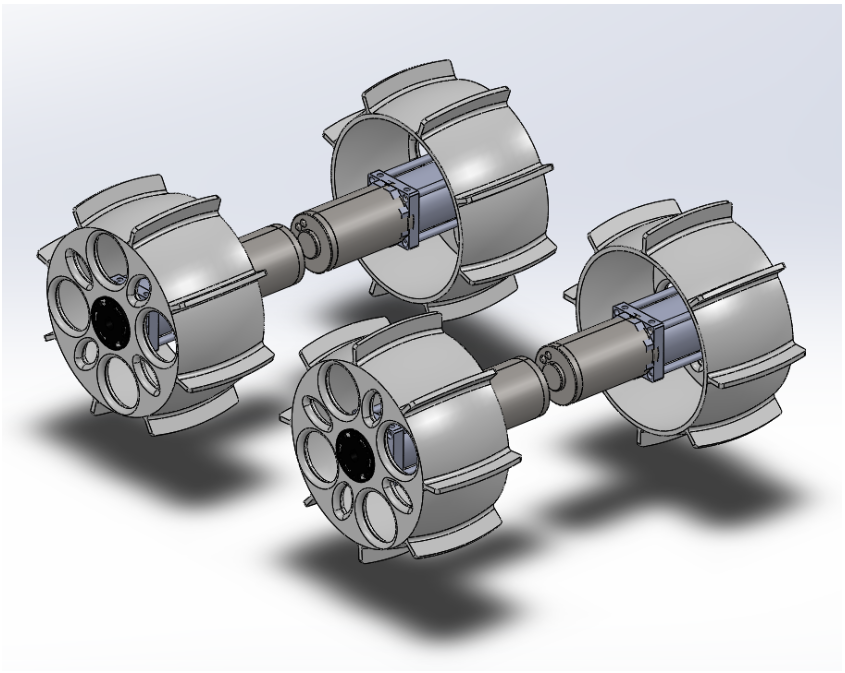

The drivetrain consisted of four independently driven wheels that were coordinated via software to allow maneuvering of the vehicle. Each electric motor had a planetary gearbox that gave an 80:1 reduction of motor speed, and also a proportional increase in torque. If a situation dictated, each wheel can be rotated independently to get out of trouble. The figure below displays each of the four motors and gearboxes connected the robot’s wheels.



Power

The power subsystem was comprised of all the electrical components necessary to power the robot for the duration of its mining run. This includes the batteries, motor controllers, computer, emergency shutoff switch, and capacitor. Significant design consideration went into the integration and mounting of all electronics components in an effort to have easily accessible components, balanced weight distribution, and optimal heat paths for components that could potentially become hot. A solid aluminum sheet was used as the primary mounting material in addition to 8020 aluminum extrusion for simple integration. All metal components have a layer of thermally conductive electrical padding to prevent ground loops.



Control

The controls subsystem consisted of all components required to implement teleoperation and/or any components of autonomy. The main control unit utilized for this project was a Fitlet 2 mini PC which can be seen below in Figure 20. This PC was custom designed for our application and included upgraded RAM, industrialized operating temperature range, an industrialized input power range, and a fanless shockproof and dustproof enclosure. These additions were included in order to ensure reliable operation in conditions that would have been seen in the competition. Increase computing power allowed Team HADES to implement data heavy computer vision algorithms if time allowed. The Fitlet computer was connected to the rest of the electronics using its own power supply. This was determined as necessary after testing showed that our capacitor was unable to supply enough power to compensate for sudden large power draws from the motors. The fitlet was able to communicate with all of the rover’s motor drivers with the use of an Arduino mega. This Arduino included many PWM capable GPIO outputs that were able to easily be integrated with the power systems.

Next Steps

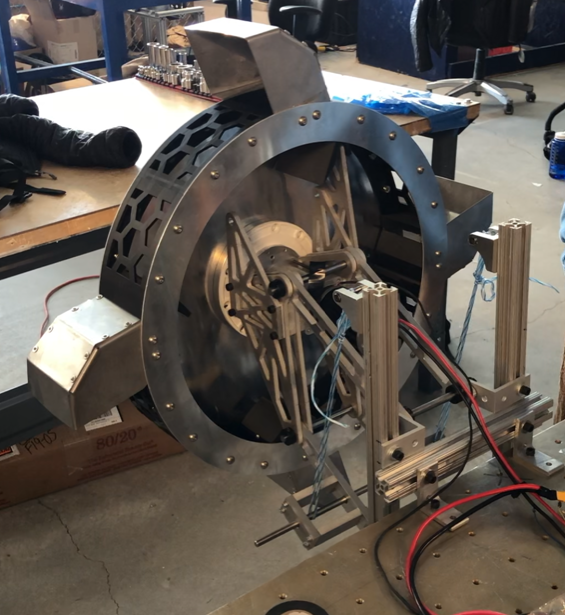

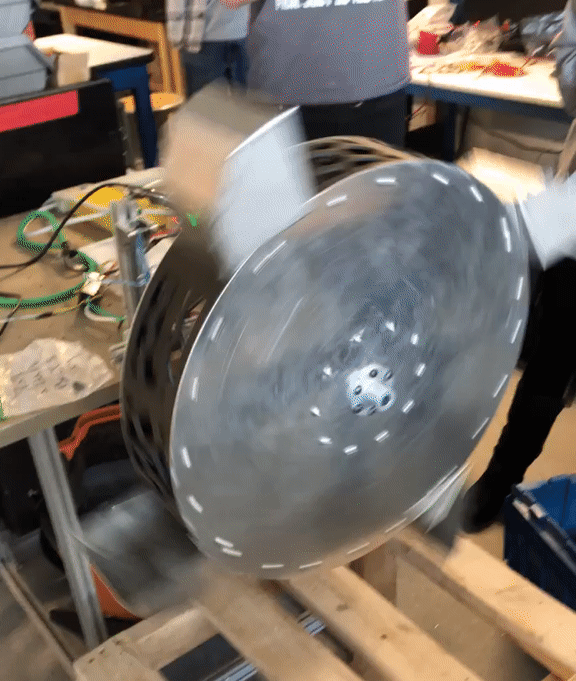

As of the mandatory prototyping seizure caused by Covid-19, team HADES’s mining rover was at a state in which about 90% of design and CAD had been completed, and about 50% of fabrication had been completed. Throughout the build process, critical subsystem components were being tested to validate expected performance. It was discovered that the bucket wheel concept worked very well at extracting a mixture of materials representative of the BP-1 Lunar simulant and icy regolith, however, some issues were found with the trapdoor mechanism that warrant a re-design.

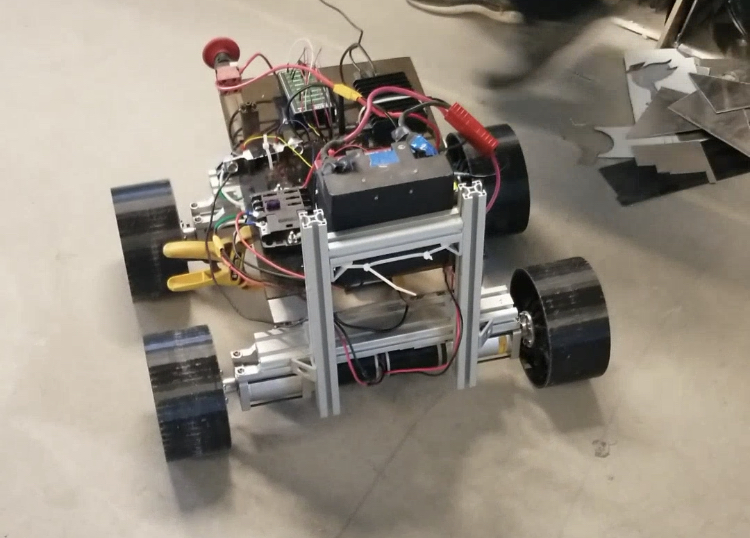

Future progress on the teleoperation system should include working towards a more accurate and error free signal to the robot’s movements as well as implementing computer vision and autonomy to the robot’s functionality.

However, most other subsystems showed positive results during testing, and it is our hope that the NASA Robotic Mining Competition team of 2021 can finish what was started and win the competition.
